1. Them rau txawb tes thiab laptops, pib tsheb, kho kom haum LED teeb (nqaij npuas, cwj pwm teeb thiab COV NTSA).
2. Tej yam muaj txuj kev ncau ntau yam khoom uas muaj ib lub tsheb fais fab tuam txhab.
3. Ntau yam chargers thiab dhia hlau lead uas yuav muab tau koj lub tsheb thiab koj cov khoom uas muaj zog lawv xav tau.

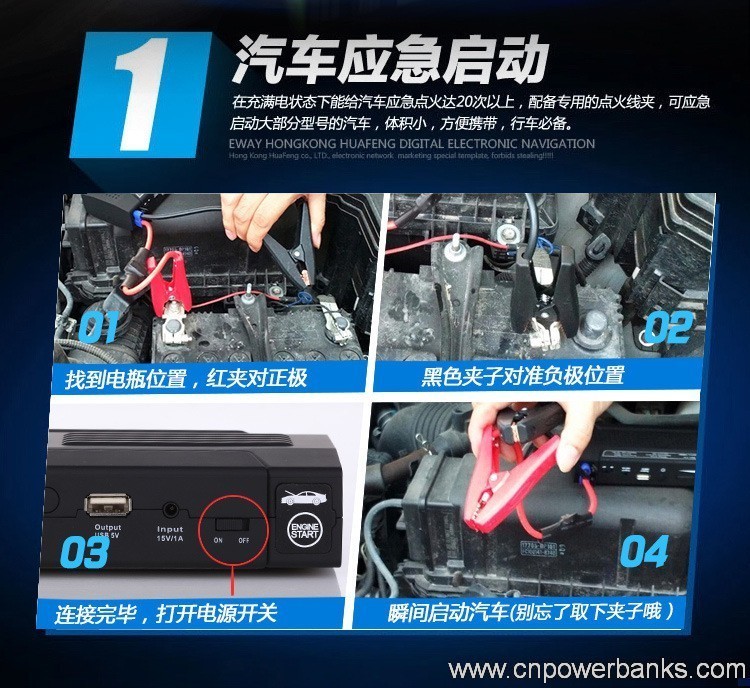

4. Nws txhawb lub tsheb nrog 12V voltage los yog ntau tshaj, pib koj lub tsheb, Ua ntej koj yuav tsum txuas lub sij hawm thaum tsis muaj lub roj teeb tuav thiab ces txuas tus tsis zoo thiab zoo connectors ntawm tus tuav nrog koj lub tsheb roj teeb.
| Raws li cov |
165*81*37hli |
| Yuag |
469g |
| Khoom npe |
Tsheb tshiab Dhia Starter |
|
|
| lom zem |
Hwj huam Charger rau tsheb/cov khoom uas muaj lwm yam |
| Yam Tseeb |
Roj teeb them chav tsev |
| Roj teeb muaj peev xwm |
13800mAh |
| Switchable Voltage |
5V/12V/16V/19V |
| Teeb Beacon |
Yog |
| Tso zis rau tsheb |
12V |
| Muab ntawv pov thawj |
CE ROHS FCC UL |
| Roj teeb nruab nrab lub neej |
Ntau tshaj 1000 lub sij hawm |
| Roj teeb ntawm tes composition |
ABS nplaim Retardant khoom |
Cov lus qhia rau siv:
1. Xaiv cov voltage thiab connector rau lub electronic ntaus ntawv los them / fais fab mov.
2. Xovxwm hloov mus pib them thaum koj ntaus txuas nrog lub sij hawm thaum fais fab tuag. Yog hais tias koj unplug lub cable, auto-pw yuav pib nyob rau hauv ib feeb.
3. Tsib LED teeb yuav flash circularly thaum them thiab tag nrho cov teeb yuav khaws kaj lug thaum koj ntaus ntawv yog full-charged.
4. Thaum them rau koj ntaus ntawv, LED teeb qhia qhov nqi koj tshuav ntawm lub built-in roj teeb. Plaub teeb qhia 80% tshuav nyiaj li cas, Peb teeb qhia 60% tshuav nyiaj li cas, ob lub teeb qhia 40% tshuav nyiaj li cas thiab ib lub teeb indicates 20% tshuav nyiaj li cas. Lub built-in roj teeb yog tas thaum tag nrho LED teeb pib nyem.
5. Xovxwm hloov tsib vib nas this pib yog hais tias koj xav siv LED rau illumination thiab xaiv cov txheej xwm raws li txoj cai (Sib, strobe, THIAJ LI, Kaw) Nias tus hloov mus transform.
6. Muab cov khoom txias txias thiab qhuav thiab muab tshav ntuj kub.
Peb lawm
Dawb Enquiry rau 12V Dhia starter hwj huam ntug dej nrog peb coj lus ceeb toom teeb
Txog tej hwj huam yuam kom them nyiaj los ntawm Hengye Electronics
TUS ME NYUAM |
1. Cov khoom no shipped ntawm EMS. DHL. KOM RAWS SIJHAWM. Fedex, ua pa, hiav txwv los rau koj Tuam Tshoj forwarder.
2. Peb muab kev pab Dropshipping.
3. 5 hnub tus me nyuam raws li thaum tau txais cov nyiaj them poob haujlwm yog lub qty yog dua 1000pcs es nws tseem tsis tau khoom customized.
4. Ntshuam tsub nqi yog buyer lub luag hauj lwm.
 |
NYIAJ THEM POOB HAUJLWM |
1. Peb yuav tsum hloov sij T/T,PayPal ,Pab neeg thaj thiab
2. 30% deposit thiab 70% ua ntej shipping.
3. Tsis muaj nyiaj them poob haujlwm sau. Peb tsuas yuav xa khoom tom qab tau txais daim ntawv qhia txog cov nyiaj them poob haujlwm
|
KEV PAB |
- Muab khoom muaj kev ruaj ntseg: Ntau yam kev tiv thaiv qhov Circuit Court system hauv lub sij hawm thaum fais fab tuag kom tsis txhob overcharge, ntxub thiab luv Circuit Court.
- Teb cov lus koj qhia rau 24 workig teev rau cov sij hawm thaum fais fab mobile
- Mekas tsim yog availabel, OEM thiab ODM yeej txais tos,pantone xim phim printing.
- Muaj kev sis tw feem Hoobkas nqi kom txaus siab nyiaj buyer cov.
- Peb muaj peb pab neeg designer, thiaj yuav tsim tau rau koj seb koj yuav tsum tau
|
VIM LI CAS PEB? |
- Peb muaj hwj huam lub txhab nyiaj thiab roj teeb Hoobkas uas ntau tshaj 10 xyoo kev lag luam no.
- Tiag tiag hauv nruab nrog ces yog, tsis tib yam li lwm yam yuav tsum (peev cuav)
- Tus nqi tsawg tshaj lwm yam yuav tsum yog
- Qauv: Peb muaj peb tus qauv thiab peb hom duab
- Zoo: sim khoom uas ib tug los ntawm ib tug ua ntej yuav khoom los yog tom qab txiav txim tiav
- Daim ntawv pov thawj WIC,FCC,ROHS,ISO9001, Koj yuav image peb zoo thiab ua tau
|
Kev kuaj xyuas ntawm CNPowerbanks.com
1. Tag nrho cov khoom siv raw thiab accessories yuav tsum tau ntsuam xyuas los yog ntsuam xyuas mus khoom chaw unqualified txhua yam khoom uas tam sim ntawd tso tseg.
2. Peb muab Tswjhwm kev kuaj thiab soj lus rau txhua yam khoom kab
3. Cov neeg ua manufacture no uas cov siv rooj ntaub ntawv thawj ob peb khoom txhua hnub yuav tau xyuas ua ntej los ntawm tus neeg ua hauj lwm raws li txoj cai, ces yog peb neeg soj ntsuam tas hnub QC. Pawg ntau lawm yuav pib muaj tsuas yog cov khoom uas tau raug kuaj thiab ntxiv soj ntsuam.
4. Thaum pawg ntau lawm, personel yuav tsis tseg xyuas kom cov khoom randomized no los soj ntsuam.
5. CNPowerbanks.com QC cov pab neeg ua ib txhij soj ntsuam thiab qhov yog seeb tshawb xyuas ua ntej lawv yuav tau tawm mus rau cov theem tom ntej ntawm ntau lawm
6. Khoom lawm yuav soj ntsuam kom lawv tau raws li peb txog qib uas zoo
7. Kev tawm tswv yim li cas rau lawv yog ceev thiab npaum,ces cov ntsiab yog kis rau tus Technical thiab QC tuam tsev uas tso cai rau tsim yoo txhim kho thiab corrections yuav tshwm sim sai sai.
Peb zog nyiaj Test Standards
Kev tshuaj ntsuam txog cov yam ntxwv:
| yam khoom |
txoj kev kuaj no |
Yuav tsum |
| Them/Cut-off voltage |
4.20±0.01V |
|
| Paug/Cut-off voltage |
3.00±0.01V |
|
| Txheem xwb |
Them cov roj teeb ntawm qhov chaw uas 0.2C mus cuag 4.2V. Kom lub roj teeb thaum tsis tu ncua 4.2V voltage mus txog ces , Cov them tam sim no txo kom 0.01C. |
Time≤8h them |
| Pas txheem |
Tom qab tus txheem them,so kom txaus rau 1 raws xuab moos ces, mus 3.0V 0.2 c |
|
| Tus nqi kws |
Tom qab tus txheem them,so kom txaus rau 1 raws xuab moos ces, mus 3.0V 0.5 C |
Time≥102Min ntxub |
| Cov yam ntxwv kub |
Siab them, muab cia rau hauv (55±2)℃ rau 2 teev, ces raws kom 3.0V @0. 5 C |
Ntxub sij hawm ≥102 Min , Tsis muaj transform, tsis tawg,tsis muaj hluav taws,tsis to |
| Cov yam ntxwv uas tsis muaj kev kub |
Daim ntawv qhia txog cov coupons qhov, muab cia rau hauv (-10±2)℃ rau 16-24 teev, ces raws kom 3.0V @0. 2 C |
Ntxub sij hawm ≥255 Min, Tsis muaj transform, tsis tawg,tsis muaj hluav taws,tsis to |
| Peev xwm ceev |
Siab them, muab cia rau hauv (20±2)℃ rau 28 hnub, ces raws rau 3.0V 0.2 C |
Ntxub sij hawm ≥255 Min,Tsis muaj transform, tsis tawg,tsis muaj hluav taws,tsis to |
| Nws lub neej 25℃ |
Them cov roj teeb @0. 5 C mus cuag 4.2V. Ces kom tus, roj teeb thaum tsis tu ncua 4.2V voltage mus txog rau qhov them ziag no, zuj zus lawm los 0.01C. So kom txaus rau 10 min. raws 3.0V 0.5 C thiab so kom txaus rau 10 min. Mus ntxiv xwb/paug mus kom txog rau thaum muaj paug tau tsawg dua 80% kev peev xwm cov movies |
Nws lub neej ≥500 |
| Cia |
Them cov roj teeb rau 40% ~ 65% ntawm nws cov movies peev xwm siv, txheem them hom, ces cia nws nyob ib 20℃±5℃, vaum 45% ~ 85% cov chav rau 12 lub hli. Raws nws 0.2C mus txog rau voltage coj mus 3.0V |
Raws lub sij hawm ≥240Min |
Cov yam ntxwv xwb:
| Yam khoom |
Txoj kev xeem |
Yuav tsum |
| Kub & kuaj av noo |
Daim ntawv qhia txog cov coupons qhov, muab nws 40±2℃ muaj 90% ~ 95RH % rau 48 teev. Ces muab cov roj teeb sov li chav nyob 20±2℃ rau 2 teev. Ces raws rau 3.0V 0.5 C |
Ntxub sij hawm ≥72 Min tsis transform, Tsis muaj yaig, tsis tawg,tsis muaj hluav taws,tsis to |
| Kev co |
Tom qab them txheem,tas lub roj teeb rau rooj kev co,ces nyuam kev co xeem rau 30 feeb ib axis ntawm XYZ co. |
Tsis tawg,tsis muaj hluav taws, tsis to. Voltage≥3.7V. |
| Xeem poob siab |
Tom qab them txheem,ntsuam xyuas tus mob Acceleration :100lub sij hawm sib tsoo m/s2 ib min: 40-80 lub sij hawm, Pulse ntev txog lub sij hawm : 16MS , Zaug poob siab : 1000±10times |
Tsis tawg, tsis muaj hluav taws, tsis to. Voltage≥3.7V. |
| Tee Test |
Tom qab them txheem , tee roj teeb ntawm 100cm, qhov siab mus rau lub ib hli 18 ~ 20mm tuab hardwood. Ob tog uas X,Y,Z qhia txhua (tag nrho 6 lub sij hawm) Tom qab qhov kev kuaj ntawd nco, raws lub roj teeb 0.5 C 3.0V mam li them nws 0.5 C kom tau tas nrho. Yuav kuaj li 3 times lub roj teeb yuav tsum tau kom mus zoo raws cov phiaj ib zaug |
Ntxub lub sij hawm ≥102 tsis Min yaig, tsis tawg,tsis muaj hluav taws,tsis to |
Kev kawm ntawv kev nyab xeeb
| Overcharge tiv no |
Tom qab them txheem. Thov ib 7.4V ruaj Voltage thiab 1 C ruaj khov tam sim no rau cov roj teeb rau 8 teev |
Tsis muaj hluav taws, tsis tawg |
| Li cov kws kuaj kev tiv thaiv no |
Thaum pom rau lub cut-off voltage,lub roj teeb yuav tsum tau nyuam short-circuit yuam nrog ib load kuj tsawg dua ntawm 30Ω rau 24 teev |
Tsis muaj hluav taws, tsis tawg |
| Luv circuiting tiv no |
Tom qab them txheem,lub roj teeb yuav tsum tau nyuam short-circuit yuam nrog tus hlau kuj tsawg dua ntawm 100mΩ rau 1 teev. Txiav tawm ntawm cov Circuit Court, Kom lub roj teeb uas muaj qhov chaw nyob 1.0C rau 5s |
Tsis muaj hluav taws, tsis tawg, Voltage≥3.7V |
| Tej yam yuav kuaj |
Tom qab txheem xwb,Muab cov roj teeb rau ib phab. A 9.1 kg tsab xov xwm no yog yuav nqis rau ntawm ib qhov siab ntawm 100cm mus rau cov pawg. Lub roj teeb muaj sijhawm los mus txia |
Tsis muaj hluav taws, tsis tawg |
| Cua sov Test |
Tom qab them txheem,ib lub roj teeb yog muab ncu rhaub cub convection los circulating cua cub. Qhov kub ntawm lub cub yog yuav tau tsa ceg tom ib tus nqi uas 5±2℃/min kom kub txog 130±2℃ thiab lub xeem rau 30 feeb. |
Tsis muaj hluav taws, tsis tawg |
| Lawm xwb |
Tom qab them txheem, muab cov roj teeb rau hauv fume hood. Ntxiv qhov voltage & tam sim no 4.8V 3 C mus tus roj teeb. Them nws kom cov roj teeb txog 4.8V, them tam sim no decreases mus yuav luag 0A. Sau tus nkhaus kub ntawm cov roj teeb. Thaum twg lub roj teeb kub decreases mus txog sab 10℃ tom qab xeeb lub ncov kub. Qhov kev kuaj ntawd xaus. Kuaj li no tib yam tsis PCM |
Tsis muaj hluav taws, tsis tawg |
| Tsis ntev no circuiting |
Tom qab them txheem, muab cov roj teeb rau hauv fume hood. Txuas tus ncej Negative thiab ncej Positive ncaj nraim. (cov hlau ntawd kuj yuav tsum tau hauv qab no 50mΩ. Sau lub roj teeb kub nkhaus thaum qhov kev kuaj ntawd. Thaum twg lub roj teeb kub decreases mus txog sab 10℃ tom qab xeeb lub ncov kub. Qhov kev kuaj ntawd xaus. Kuaj li no tib yam tsis PCM |
Kev kawm ntawv kev nyab xeeb
